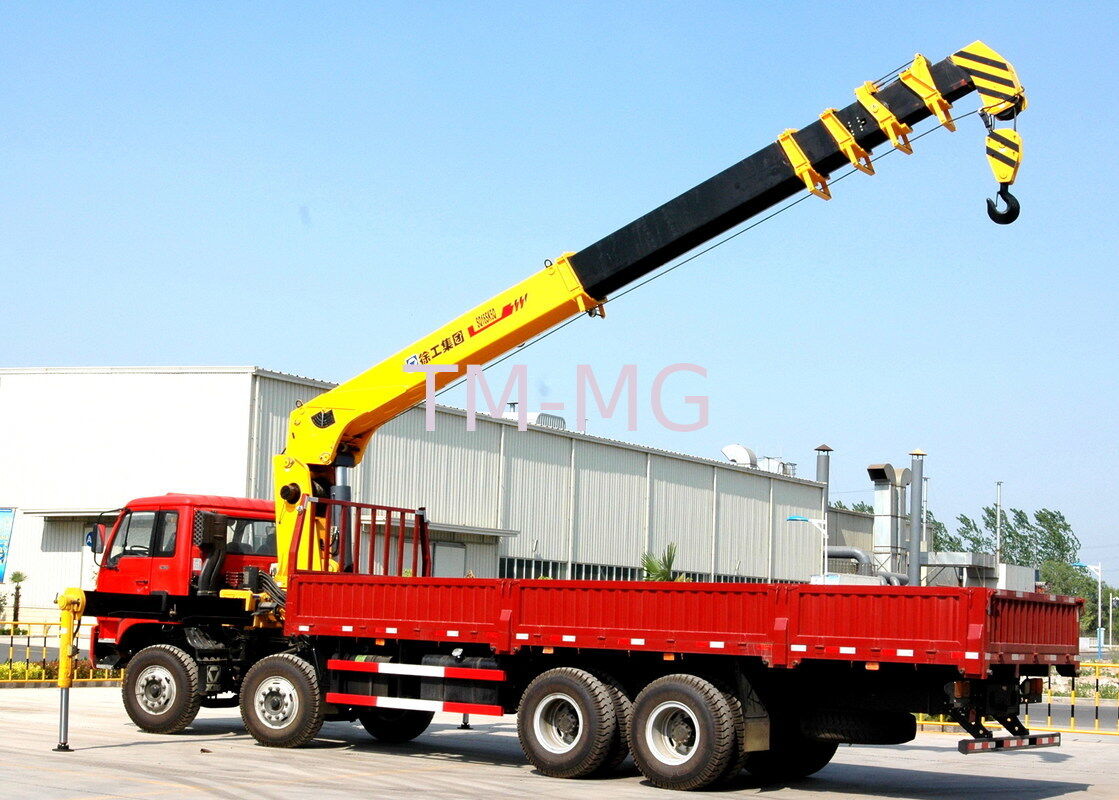

12T Telescopic Boom Truck Mounted Crane 21m Lifting Height Hydraulic Winch 360° Rotation
  • 12T Telescopic Boom Truck Mounted Crane 21m Lifting Height Hydraulic Winch 360° Rotation
  • 12T Telescopic Boom Truck Mounted Crane 21m Lifting Height Hydraulic Winch 360° Rotation
  • 12T Telescopic Boom Truck Mounted Crane 21m Lifting Height Hydraulic Winch 360° Rotation
12T Telescopic Boom Truck Mounted Crane 21m Lifting Height Hydraulic Winch 360° Rotation

12T Telescopic Boom Truck Mounted Crane 21m Lifting Height Hydraulic Winch 360° Rotation

Place of Origin China
Brand Name Eternalwin
Certification CE
Model Number EW
Product Details
Color:
Customized
Warranty:
1 Year
Usage:
Lifting
Weight:
4,200 Kg
Power Source:
Electric / Diesel Engine
Customized Boom Length:
Available
Load Capacity:
12ton-12ton
Loading Capacity:
3T 5T 8T 10T 12T 16T 20T 25T
Highlight:

12T Telescopic Boom Crane

,

Hexagonal Boom Section

,

21m Hook Height Crane

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD 6,800-32,000 / Unit
Packaging Details
Steel transport frame with waterproof export film and fumigated wooden cases for accessories
Delivery Time
20-30 days
Payment Terms
L/C,T/T,Western Union
Supply Ability
200unit/month
Product Description
12T Telescopic Boom Truck Mounted Crane 21m Lifting Height Hydraulic Winch 360° Rotation
Our 12 ton straight telescopic boom crane series combines robust steel construction with advanced hydraulic systems to deliver high reach lifting performance on standard cargo trucks.
Four hexagonal boom sections extend through one hydraulic cylinder and chain system, giving a 21 m hook height while the boom keeps a slim profile in the transport position.
Key Features & Benefits
  • Four-section hexagonal boom with internal chain extension and nylon wear pads
  • 21 m maximum hook height and 17.5 m working radius from one truck position
  • Integrated hydraulic winch with automatic brake and grooved drum
  • Double pump system allows simultaneous boom extension and winch operation
  • Front stabilizer plus H-type rear outriggers with 5,600 mm span
  • 360-degree continuous rotation for optimal positioning
  • CE certified for quality assurance and customs clearance
  • Customizable boom configurations to meet specific requirements
Technical Specifications
ModelEW12T4
Maximum Lifting Capacity12,000 kg at 2.5 m
Maximum Lifting Moment27 t.m
Boom Type4-section hexagonal telescopic boom
Maximum Working Radius17.5 m
Maximum Lifting Height21 m
Rotation Angle360° continuous
Outrigger Span5,600 mm fully extended
Winch Capacity5,000 kg single line pull
Hydraulic Pressure25 MPa
Crane Weight4,200 kg
Recommended Chassis12-16 t cargo truck, 4x2 or 6x4
Boom length, outrigger span and mounting brackets can be customized to your chassis and local road regulations.
Applications
Steel structure erection, Precast concrete placing, Bridge and road maintenance, Roof truss installation, Power pole erection, Heavy cargo self-loading.
Packaging & Delivery
Each crane is bolted to a steel skid, boom sections are retracted and locked, hoses are sealed, and the unit is packed with moisture barrier film and container desiccant for safe worldwide delivery.
Client Visits & Support
We welcome client visits to our manufacturing facilities to inspect product quality and discuss custom requirements. Our technical team provides comprehensive support throughout the entire process, including chassis matching, installation drawings and after-sales spare parts supply.
