Product Details:

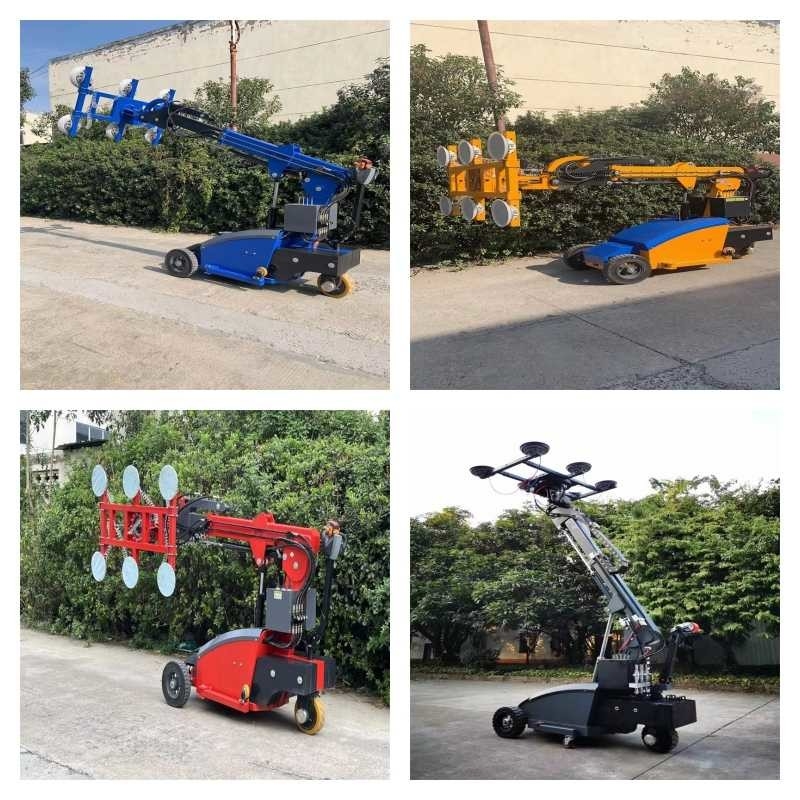

800kg Capacity 5m Lifting Height Robot Vacuum Glass Lifter For Curtain Wall
Eternalwin Group is a professional vacuum lifting equipment supplier, such as glass robot vacuum lifter, X type vacuum lifter, H type vacuum lifter, sheet vacuum lifter, pneumatic vacuum lifter, forklift type glass vacuum lifter, vacuum tube lifter and so on.
Eternalwin EWR Series Vacuum Glass Lifter is an ideal product for transporting and lifting glass and other fragile materials in many different types of applications. With 360 degree rotation and a maximum lifting height of 5m, it is safe and reliable for transporting and lifting glass, stone, marble, and other materials.
Eternalwin EWR Series Vacuum Glass Lifter is the perfect choice for many different types of applications such as glass transportation, glass lifting, stone moving, marble lifting, and other fragile material moving. It is perfect for many different industries such as construction, automotive, aerospace, and marine. It is also suitable for many other applications such as industrial lifting and moving, material handling, and other personal uses. It is the perfect choice for glass vacuum transporter, vacuum glass mover, and vacuum glass lifter.
Features:
- Dual-system control, one set vacuum system for working, and one set for alternate.
- Adopt Anercan THOMAS vacuum pump, ltaly METALROTA heavy type driving wheel, Swiss BUCHER power unit and intelligent maintenance-free battery, during the use, without air source or power supply. It can achieve electric walking, lifting, lowering, taking and releasing air by electrical. Manually rotated 360°in the vertical side, and manually rotated 90°in the horizontal side.
- Withe Japan PANASONIC digital display vacuum pressure switch and battery fuel gauge, clearly monitor the safe operation if the equipment.
- With vacuum pressure auto supply system to ensure the whole vacuum system maintained at a relatively constant safety time, safer to use.
- Adjustable design, can be changed the position of the suction cups and assembled in various ways according to needs, each suction equipped with a separate control valve, can handle glass of different shapes and sizes.
Technical Parameters:
|
Product Name
|
Robot Vacuum Lifter
|
|
Model
|
EWR800
|
|
Maximum load weight
|
800KG
|
|
Hand rotation angle
|
360°
|
|
Maximum lift height
|
5000mm
|
|
Operation method
|
Walking Type
|
|
Battery
|
2x12V/150A
|
|
Charger
|
24V/18A
|
|
Walking motor
|
24V/1500W
|
|
Lifting motor
|
24V/2200W
|
|
Width of the car body
|
1020mm
|
|
Length of the body
|
2650mm
|
|
Size of front tyre
|
400*90mm
|
|
Driving wheel dimensions
|
300*100mm
|
|
Suction cup size
|
300mm
|
|
Suction cup quantity
|
8pcs
|
|
Configuration
|
Manual rotation, manual side rotation,
wired remote control
|
|
Weight
|
1950kg
|
FAQ:
Q1: What is the Robot Vacuum Glass Lifter?
A1: The Vacuum Glass Lifter is a high efficient lifting equipment, which is designed for lifting and moving glass and other sheet materials.
Q2: What do you accept trade terms?
A2: We can accept EXW, FOB, CIF, CFR, DAP, DDP.
Q3: How much does the Vacuum Glass Lifter cost?
A3: The price of the Vacuum Glass Lifter is Negotiable.
Q4: What is the packaging of the Vacuum Glass Lifter?
A4: The Vacuum Glass Lifter is usually packed with wooden packages or containers.
Q5: How long does it take to deliver the Vacuum Glass Lifter?
A5: It usually takes 15-20 Working Days to deliver the Vacuum Glass Lifter.
