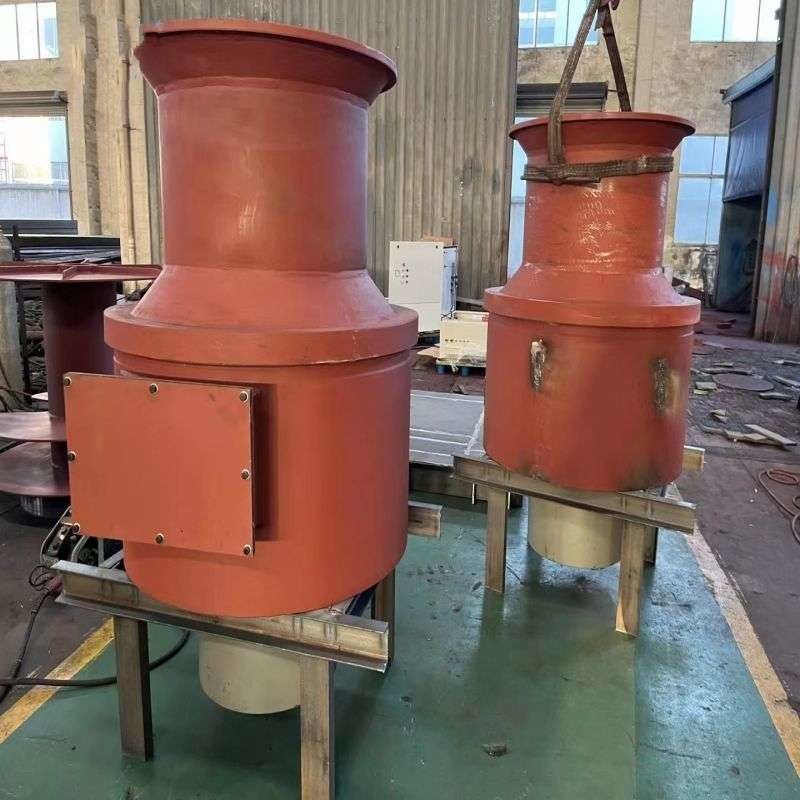

2 Ton 38mm Electric Anchor Capstan Vertical Winch With Control Carbinet
Delivery item
anchor-mooring
2.1. Spire anchor-mooring With below deck location
electric motor, type GMP-34-A2, for anchor chain caliber 34 mm, strength category
2, as well as for working with a mooring rope. Left version - 01 set and right
version - 02 set. China production. Preliminary overall dimensions according to the
drawing (Appendix No. 1).
With below deck location
3.Delivery item list
3.1. Anchor-mooring capstan, type GMP-34-A2, in quantity: 03 sets (01 sets -
left-hand execution, 02 set - right-hand execution).
Note: the version is specified according to
manufacturer, taking into account the placement of equipment in the bow on the
starboard and port sides (2 sets) and in the stern in the DP (1 set).
factory drawings
Contents of one set:
3.1.1. Complete capstan, qty: 01 pcs.
3.1.2. Local control post IP56 OM1, qty: 01 pcs.
3.1.3. Control panel IP44 OM5, qty: 01 pcs.
3.1.4. Etched chain length and speed indicator repeater IP44 OM5, in
qty: 01 pcs
3.1.5. Spare parts kit, qty: 01 pcs.
3.1.6. Required fasteners (bolts, nuts, washers, etc.), qty: 01 set.
3.1.7. Screw stopper, type GM-34R(L), qty: 01 pcs.
3.1.8. Chain holder, type GM-L34, qty: 01 pcs.
3.1.9. Spire passport, qty: 01 pcs.
3.1.10. Technical description and operating instructions, qty: 01 pcs.
3.1.11. RS certificate, qty: 01 pcs.
| Specification |
|
Φ34mm electric anchor capston
Main Technical Requirements
1. Chain Dia.34 mm
2. Working load49 kN
3. Overload pull73.5 kN
4. Holding load294 kN
5. Anchor-lifting speed 10 m/min
6. Mooring load40 kN
7. Nominal mooring speed 10 m/min
8. Cable dia.φ26 mm
9. Elecrtrical Motor:
Model
JZ2-H51-4/8/1616/16/11 kW
Speed:1400/665/300 r/min
Working duty 10/30/5 min
Voltage: 380v, 50Hz
Working duty: 10/30/5min
|
Pictures and shipping
FAQ
1. What kind of after-sale services will you supply?
One year warranty.
Providing free quick-wear part.
Low charge for continue maintenance when warranty is expired.
Exclusive engineer support at any time.
We can provide free training to end-users.
2. Can you make customized products?
Yes, of course. You can send your workshop pictures or drawings, or just tell us your special demands,
our engineers can make suitable design for you
3. Can you book the boat for me, as we do not have our own forwarder?
Sure, we have our own forwarder, and we had cooperated with the forwarder more than 5 years
4. Can you supply the quality certification?
Yes, all kinds of certification are available, if you have doubt, you can come to our factory and test it by yourself,
or you can let some third-partied to do the inspection for you.
5. How can I install the it?
Our engineers can come to your work site to guide the installation.
6. Can I have a visit to your factory?
You can come to our factory anytime when you are convenient. We will make arrangement to pick you up.
