500KG Vacuum Lifter For Steel Plates Sheet Metal Lifting Equipment

    500KG Vacuum Lifter For Steel Plates Sheet Metal Lifting Equipment

   Product Description:

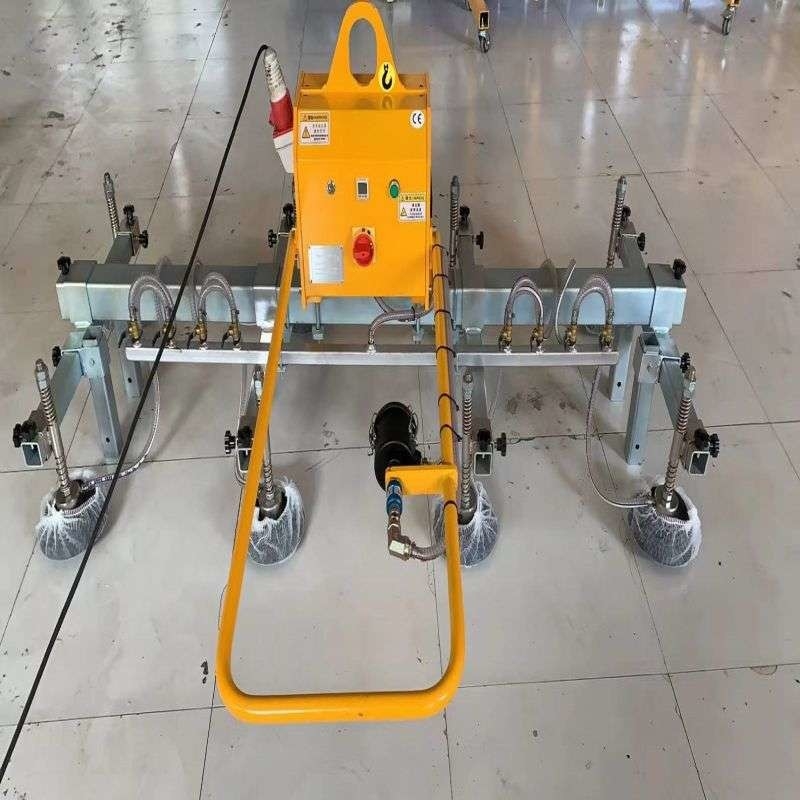

SSUPYE Vacuum lifter for metal plate is used for loading and unloading various processing machines, such as laser cutting machine, plasma cutting machine, shearing machine loading and unloading, suitable for aluminum plate, stainless steel plate, iron plate, acrylic plate and other flat surface plate, energy saving and environmental protection, easy to operate, high working efficiency. Retractable design, adjustable suction cup position, each suction cup is equipped with a manually controlled ball valve, convenient to handle different sizes of plates, the suction cup rod has upper and lower double springs, when the flat plate is not flat, the springs play the role of buffer, so that the force of the suction cup is uniform, thus ensuring the safety and reliability of the suction cup. The end of the main beam is sealed by flat plate welding, which is used as a vacuum storage tank. When the equipment is suddenly shut down, it can ensure that the plate is reliably adsorbed for at least 20 minutes at least without causing a safety accident, original Panasonic vacuum pressure switch, and assembled with a high sensitivity buzzer alarm unit. If the set pressure is not reached, a yellow indicator light is illuminated and a siren sounds to alert the operator for prompt disposal.



Technical Parameters:

Sheet Vacuum Sucker
Model	/	SSUPYE
Rated Load Capacity	mm	200	400	600	800	1000	1500	2000
Pad size	mm	φ200	φ200	φ200	φ200	φ200	φ200	φ200
Plate Size	mm	3000*1500
Sucker No.	/	6	6	8	10	8	10	12
Power	/	380V/DC/12V
Spreader Length	/	2000	2000	2000	2500	2000	2000	2500
Spreader Width	/	800	800	800	800	800	800	800

Certificate:



Shipping and delivery:



FAQ:

1. Please send the following requirements :

1).model 2).Quantity 3).If need CIF ,what is the destination port

2. Warranty : One Year

3.Payment Terms : T/T ,LC ,WU,Cash -- --

4.Delivery Time : Within 7---10 days after receiving your payment



5. Accept customized product (We can make metal sheet panel slab board plate vacuum lifter according to customers' requirements)
